Architectural Rigid Mesh Used as Elevator Mesh

Architectural rigid mesh, also called architectural hard mesh, is a kind of special decorative metal fabric. It is cannot be folded no matter in the horizontal direction or the vertical direction.

Made from stainless steel wire, brass wire, copper wire and bronze wire, the architectural rigid mesh has firm and durable structure. It also has bright and beautiful surface. With versatile types and structures, architectural hard mesh is widely used in the constructions, such as facade cladding in the office buildings, handrail and balustrade in the balconies. It is also widely used as elevator mesh in the interior or exterior decorations.


DARM-01
Material: stainless steel wire 304/316/316L.
Warp diameter: 2mm.
Warp pitch: 8mm.
Weft diameter: 1.5mm × 6 ×2, 1.5mm × 7.
Weft pitch: 10.5mm, 18mm.

DARM-02
Material: stainless steel wire 304/316/316L.
Warp diameter: 2.7mm × 1.6mm.
Warp pitch: 2.7mm.
Weft diameter: 1.5mm.
Weft pitch: 4.95mm.

DARM-03
Material: stainless steel wire and brass wire.
Warp diameter: 2.7mm × 1.6mm.
Warp pitch: 2.8mm.
Weft diameter: 1.5mm.
Weft pitch: 9.3mm.

DARM-04
Material: stainless steel wire 304/316/316L.
Warp diameter: 1.5mm × 4.
Warp pitch: 6mm.
Weft diameter: 1.5mm.
Weft pitch: 6.7mm.

DARM-05
Material: phosphorous bronze.
Warp diameter: 1.5mm × 4.
Warp pitch: 6mm.
Weft diameter: 1.5mm.
Weft pitch: 6.7mm.

DARM-06
Material: stainless steel wire and brass wire.
Warp diameter: 2mm × 1, 1.5mm × 4.
Warp pitch: 6mm, 2mm.
Weft diameter: 1.5mm.
Weft pitch: 6.7mm.

DARM-07
Material: stainless steel wire 304/316/316L.
Warp diameter: 12.6mm × 1.2mm, 6.3mm × 1.2mm.
Warp pitch: 6.3mm/ 12.6mm.
Weft diameter: 2.5mm.
Weft pitch: 6.15mm.

DARM-08
Material: stainless steel wire and brass wire.
Warp diameter: 12.6mm × 1.2mm, 6.3mm × 1.2mm.
Warp pitch: 6.3mm, 12.6mm.
Weft diameter: 3mm.
Weft pitch: 6.15mm.

DARM-09
Material: brass wire.
Warp diameter: 3mm × 1.5mm.
Warp pitch: 24mm.
Weft diameter: 1.6mm.
Weft pitch: 4.2mm.

DARM-10
Material: stainless steel wire 304/316/316L.
Warp diameter: 1.2mm × 2.
Warp pitch: 5mm.
Weft diameter: 2mm.
Weft pitch: 5mm.

DARM-11
Material: bronze wire.
Structure: three plain crimped wire in the warp and a flat wire in the weft.
Warp diameter: 1.0mm × 3.
Warp pitch: 8mm.
Weft diameter: 1mm × 4mm.
Weft pitch: 7mm.

DARM-12
Material: stainless steel wire 304/316/316L.
Structure: flat wire plain crimped.
Warp diameter: 2.7mm × 1.6mm.
Warp pitch: 6.4mm.
Weft diameter: 2.7mm × 1.6mm.
Weft pitch: 6.4mm.

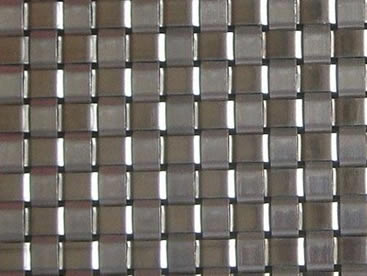

DARM-13
Material: stainless steel wire 304/316/316L.
Structure: flat wire plain crimped.
Warp diameter: 7mm × 1mm.
Warp pitch: 9mm.
Weft diameter: 7mm × 1mm.
Weft pitch: 9mm.

DARM-14
Material: stainless steel wire 304/316/316L.
Structure: flat wire plain crimped.
Warp diameter: 6mm × 1.5mm.
Warp pitch: 12mm.
Weft diameter: 6mm × 1.5mm.
Weft pitch: 12mm.

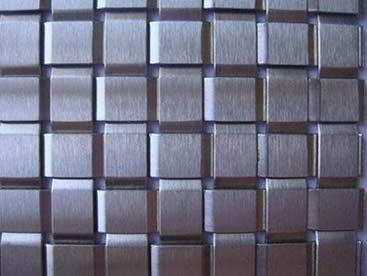

DARM-15
Material: stainless steel wire 304/316/316L.
Structure: flat wire plain crimped.
Warp diameter: 10mm × 1mm.
Warp pitch: 13mm.
Weft diameter: 10mm × 1mm.
Weft pitch: 13mm.

DARM-16
Material: stainless steel wire 304/316/316L.
Structure: a flat wire in the warp and three flat wire in the weft.
Warp diameter: 2.0mm × 1.0mm.
Warp pitch: 4mm.
Weft diameter: 2.0mm × 1.0mm × 3.
Weft pitch: 18mm.

DARM-17
Material: stainless steel wire 304/316/316L.
Warp diameter: 7mm × 1mm × 2.
Warp pitch: 35mm.
Weft diameter: 7mm × 1mm × 2.
Weft pitch: 35mm.

DARM-18
Material: stainless steel wire 304/316/316L.
Warp diameter: 3.0mm × 1.0mm.
Warp pitch: 17mm.
Weft diameter: 4.0mm × 1.0mm.
Weft pitch: 6mm.

DARM-19
Material: stainless steel wire 304/316/316L.
Warp diameter: 2.0mm.
Warp pitch: 5.0mm.
Weft diameter: 5.0mm × 1.2mm.
Weft pitch: 10mm.

DARM-20
Material: stainless steel wire 304/316/316L.
Warp diameter: 2.0mm × 2.
Warp pitch: 22.5mm.
Weft diameter: 2.0mm × 2.
Weft pitch: 22.5mm.

Features

  • Rigid and firm structure. The architectural rigid mesh cannot be folded, it is used in a panel.
  • Various types. The architectural rigid mesh has various types and structures, special structures can be customized.
  • Beautiful surface. The brass and copper material can supply a beautiful surface for the rigid mesh, it can also suit more applications.
  • Functional and decorative. The architectural woven mesh can be used as handrails and balustrade, which can not only supply decorative functions, it can also secure people from danger.

Application

  • Column decoration.
  • Ceiling decoration.
  • Wall decoration.
  • Facade cladding.
  • Elevator mesh.
  • Handrails in the staircases.
  • Balustrade in balcony.
Bronze architectural rigid mesh is covering the interior elevator.
Architectural rigid mesh is widely used as elevator mesh.
Brass architectural rigid mesh is covering a column.
Architectural rigid mesh can be used for column decoration.
Flat wire stainless steel architectural rigid mesh is installed onto the metal frames of the handrail.
Architectural rigid mesh installed onto the handrails for protection and decoration.
Stainless steel and brass type architectural rigid mesh is installed on the facade of building.
Architectural rigid mesh is widely used as facade cladding in the buildings.
