Conveyor Belt Mesh Flat and Round Spiral Wires

Conveyor belt mesh, also called spiral weave mesh, is a type of decorative metal fabric. It is manufactured with super quality stainless steel wire, copper wire, brass wire and other steel wire. The structure of conveyor belt mesh is spiral wire and cross rod wire with knuckled edge or welded edge.

Spiral wire of conveyor belt mesh has two types: flat wire and round wire. The cross rod wire can be straight or pre-crimped wires.

Conveyor belt mesh is widely found in the architecture, such as the facade cladding, handrails, balustrade, wall decorations and space dividers.

Specifications

Material: stainless steel wire, copper wire or brass wire.
Spiral wire type: flat wire or round wire.
Spiral wire diameter:
- Flat wire diameter: 2.5mm, 3mm, 3.2mm, 3.3mm, etc.
- Round wire diameter: 1.2mm, 2.6mm, etc.
Spiral pitch: 3mm, 8mm, 12.5mm, 20mm, 24.3mm, 35mm, 36mm, 38mm,
Rod type: straight wire or pre-crimped wire.
Rod diameter:
- Straight wire diameter: 2mm, 3.5mm, etc.
- Pre-crimped wire diameter: 1.3mm, 2mm, 2.5mm, 2.6mm, 3mm, 3.5mm, etc.
Rod pitch: 13mm, 15mm, 22.5mm, 25mm, 30mm 40mm, 60mm, 64.5mm, etc.

A piece of conveyor belt mesh with 3.2mm flat wire and crimped round wire.

DCBM-01

Material: stainless steel wire 304/316/316L.

Spiral diameter: 3.2mm.

Spiral pitch: 36mm.

Rod diameter: 3mm.

Rod pitch: 64.5mm.

A piece of conveyor belt mesh with 3.3mm flat wire and crimped round wire.

DCBM-02

Material: stainless steel wire 304/316/316L.

Spiral diameter: 3.3mm.

Spiral pitch: 38mm.

Rod diameter: 3mm.

Rod pitch: 30mm.

A piece of stainless steel conveyor belt mesh on the gray background.

DCBM-03

Material: stainless steel wire 304/316/316L.

Spiral diameter: 2.5mm.

Spiral pitch: 12.5mm.

Rod diameter: 2.5mm.

Rod pitch: 25mm.

A piece of brass conveyor belt mesh on the gray background.

DCBM-04

Material: brass wire.

Spiral diameter: 3mm.

Spiral pitch: 35mm.

Rod diameter: 3mm.

Rod pitch: 60mm.

A piece of conveyor belt mesh with flat spiral wires and straight round wires.

DCBM-05

Material: stainless steel wire 304/316/316L.

Spiral diameter: 3.2mm.

Spiral pitch: 20mm.

Rod diameter: 3.5mm.

Rod pitch: 40mm.

A piece of conveyor belt mesh with round spiral wires and straight round wires.

DCBM-06

Material: stainless steel wire 304/316/316L.

Spiral diameter: 1.2mm.

Spiral pitch: 3mm.

Rod diameter: 2mm.

Rod pitch: 15mm.

A piece of conveyor belt mesh with round spiral wires and 2.6mm round crimped rod wires.

DCBM-07

Material: stainless steel wire 304/316/316L.

Spiral diameter: 2.6mm.

Spiral pitch: 24.3mm.

Rod diameter: 2.6mm.

Rod pitch: 22.5mm.

A piece of conveyor belt mesh with round spiral wires and 1.3mm round crimped rod wires.

DCBM-08

Material: stainless steel wire 304/316/316L.

Spiral diameter: 1.2mm.

Spiral pitch: 8mm.

Rod diameter: 1.3mm.

Rod pitch: 13mm.

Features

Flat or round spiral wire.
Stainless steel wire for durable and long lasting.
Copper and brass wire for beautiful and attractive surface.
Knuckled and welded edge for choice.
Functional. Can be used as space divider, security handrails and balustrade.
Decorative. It is widely used as facade cladding and wall decorations.

Applications

Conveyor belt mesh, decorative and functional metal fabric, is more and more popular in various applications:

Space divider.
Wall decoration.
Handrail and balustrade.
Wall decoration.
Facade cladding.

The balustrade on the balcony is made of conveyor belt mesh.

Conveyor belt mesh can be used as balustrade or handrail in balcony or stairs.

The wall of parking lots is made of conveyor belt mesh.

Conveyor belt mesh is used as wall cladding in the parking lots.

Two pieces of conveyor belt meshes are installed on the surface of building.

Conveyor belt mesh is widely used as facade cladding in office buildings.

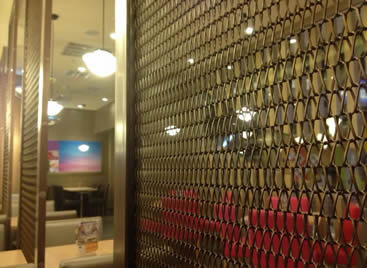

Copper conveyor belt mesh is installed in the room to divide space.

Conveyor belt mesh is widely used as space divider in the restaurants or offices.
