Crimped Architectural Mesh - Intermediate and Lock Crimped Method

Crimped architectural mesh is manufactured from stainless steel wire, copper wire, brass wire, phosphor bronze wire and other materials. The crimped architectural mesh features aesthetic appeal, functional and versatile, which has been adopted for more and more architectural constructions. Additional, the affordable budget and long lasting life make the crimped architectural mesh be outstanding in the various decorative materials.

The crimped architectural mesh is widely used as window screens in the house, staircase wall in the office buildings, ceiling and wall decoration in the shopping malls and exhibition halls and space dividers in the office building and restaurants. Furthermore, the crimped architectural mesh is widely used as the facade cladding and building cladding in the high-class building constructions.

Specifications
  • Material: stainless steel wire, copper wire, brass wire, phosphor bronze wire and other materials.
  • Weaving method: plain crimped, pre-crimped, intermediate crimped, flat top crimped, lock crimped and dutch weave.
  • Wire diameter: 1.2mm - 4mm.
  • Wire pitch: 1.5mm - 100mm.
Phosphor bronze pre-crimped wire in the warp and straight ss wire in the weft.
DCAM-01
Material: stainless steel wire and phosphor bronze wire.
Structure: crimped wire in the warp the straight wire in the weft.
Warp diameter: 1.6mm.
Warp pitch: 5.4mm.
Weft diameter: 1.35mm.
Weft pitch: 2.5mm.
Pre-crimped ss wire in the warp and intermediate crimped ss wire in the weft.
DCAM-02
Material: stainless steel wire 304/316/316L.
Structure: pre-crimped wire in the warp and intermediate wire in the weft.
Warp diameter: 3mm.
Warp pitch: 20mm.
Weft diameter: 2.5mm.
Weft pitch: 10mm.
Straight ss wire in the warp and lock crimped ss wire in the weft.
DCAM-03
Material: stainless steel wire 304/316/316L.
Structure: straight wire in the warp and lock crimped wire in the weft.
Warp diameter: 2.0mm.
Warp pitch: 17.5mm.
Weft diameter: 1.5mm.
Weft pitch: 3.5mm.
Plain crimped ss wire in the warp and lock crimped ss wire in the weft.
DCAM-04
Material: stainless steel wire 304/316/316L.
Structure: plain crimped wire in the warp and lock crimped wire in the weft.
Warp diameter: 3.0mm.
Warp pitch: 20mm.
Weft diameter: 2.5mm.
Weft pitch: 10mm.
Double plain crimped ss wires in the warp and lock crimped wire in the weft.
DCAM-05
Material: stainless steel wire 304/316/316L.
Structure: double plain crimped wires in the warp and a lock crimped wire in the weft.
Warp diameter: 1.2mm × 2.
Warp pitch: 17.5mm.
Weft diameter: 2.0mm.
Weft pitch: 4.0mm.
Double ss plain crimped wires in the warp and a ss lock crimped wire in the weft.
DCAM-06
Material: stainless steel wire 304/316/316L.
Structure: double plain crimped wires in the warp and a lock crimped wire in the weft.
Warp diameter: 1.2mm × 2.
Warp pitch: 17.5mm.
Weft diameter: 2mm.
Weft pitch: 6mm.
Four pre-crimped ss wires in the warp and a straight wire in the weft.
DCAM-07
Material: stainless steel wire 304/316/316L.
Structure: four pre-crimped wires in the warp and a straight wire in the weft.
Warp diameter: 1.8mm × 4.
Warp pitch: 50mm.
Weft diameter: 3mm.
Weft pitch: 8mm.
Four ss pre-crimped wires in the warp and a ss straight wire in the weft.
DCAM-08
Material: stainless steel wire 304/316/316L.
Structure: four pre-crimped wire in the warp and a straight wire in the weft.
Warp diameter: 1.0mm × 4.
Warp pitch: 36mm.
Weft diameter: 2.0mm.
Weft pitch: 4.0mm.

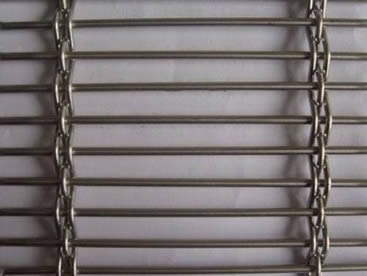

Three intermediate ss wires in the warp and a straight wire in the weft.
DCAM-09
Material: stainless steel wire 304/316/316L.
Structure: three plain crimped wires in the warp and a straight wire in the weft.
Warp diameter: 1.8mm × 3.
Warp pitch: 80mm.
Weft diameter: 3mm.
Weft pitch: 10mm.

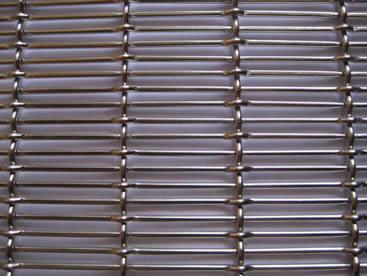

A pre-crimped ss wire in the warp and a lock crimped ss wire in the weft.
DCAM-10
Material: stainless steel wire 304/316/316L.
Structure: Pre-crimped wire in the warp and lock crimped wire in the weft.
Warp diameter: 2.0mm.
Warp pitch: 32mm.
Weft diameter: 2.0mm.
Weft pitch: 4.5mm.
Three intermediate ss wires in the warp and a intermediate crimped wire in the weft.
DCAM-11
Material: stainless steel wire.
Structure: three intermediate crimped wire in the warp and a intermediate crimped wire in the weft.
Warp diameter: 2.45mm × 3.
Warp pitch: 100mm.
Weft diameter: 4.0mm.
Weft pitch: 13.5mm.
A flat top ss flat wire in the warp and a pre-crimped ss wire in the weft.
DCAM-12
Material: stainless steel wire 304/316/316L.
Structure: flat top crimped flat wire in the warp and pre-crimped wire in the weft.
Warp diameter: 1.3mm.
Warp pitch: 5.5mm.
Weft diameter: 1.6mm.
Weft pitch: 2.5mm.
A piece of plain crimped type crimped architectural mesh on the table.
DCAM-13
Material: stainless steel wire 304/316/316L.
Structure: plain weave crimped.
Warp diameter: 1.2mm.
Warp pitch: 5mm.
Weft diameter: 1mm.
Weft pitch: 5mm.
A piece of dutch weave crimped mesh on the table.
DCAM-14
Material: stainless steel wire 304/316/316L.
Structure: dutch weave crimped.
Warp diameter: 2.0mm.
Warp pitch: 17.5mm.
Weft diameter: 1.5mm.
Weft pitch: 1.5mm.
Features
  • Various structures. Plain crimped, intermediate crimped, flat top, lock crimped and other various weaving method and any two combination.
  • Beautiful surface. Stainless steel wire for bright silver surface and brass, copper, phosphor bronze for classical surface.
  • Durable and long lasting. The stainless steel wire can ensure the crimped architectural mesh be long lasting and durable.
  • Corrosion and rust resistance. High quality stainless steel materials can resistance to the corrosion, rust, acid and alkali.
  • Functional. The crimped architectural mesh can be used as space divider, window screen, security gate and other functional applications.
  • Decorative. The crimped architectural mesh is widely used as decorative materials for ceilings, staircase walls, building facade and other constructions.
Applications
Crimped architectural mesh is installed on the ceilings.

Crimped woven architectural mesh can be used as ceiling decoration materials.

Two pieces of crimped architectural meshes are installed on the windows.

Crimped woven architectural mesh can be used as window screen.

Five pieces of copper crimped architectural meshes are installed on the wall.

Crimped woven architectural mesh is used for wall decorations.

Crimped architectural mesh is installed on the staircase walls.

Crimped woven architectural mesh can be used for staircase wall decorations.
